Facility Tour

Take a brief look at our EMS capabilities and investments we’ve made in our environmentally controlled facility, advanced equipment and processes that insure the most effective solutions for manufacturing of your electronics products . . .

Surface Mount Assembly Lines

Spectra-Tech’s uses the latest Fuji technology for its four high-speed SMT manufacturing lines. Each line is capable of mounting up to 100,000 components per hour and incorporate screen printing, placement and solder reflow with interchangeable capabilities that provide maximum flexibility on production runs.

Back To Top

Hand Assembly

For through-hole and mixed technology assembly, Spectra-Tech has highly efficient slide-lines for drop-in placement. Our skilled technicians work from detailed documentation, assuring a consistent and accurate drop-in process with maximum flexibility to manage customized builds, prototypes, and all change requests.

Back To Top

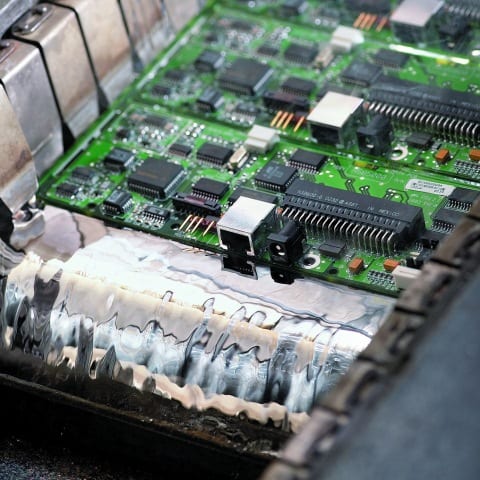

Wave Soldering

The wave solder process is utilized for large-scale lead soldering of circuit boards after the placement of through hole components has been completed.

Back To Top

Selective Soldering Machine

Spectra-Tech’s two advanced ERSA selective soldering machines use programmable solder pots for both leaded and lead free (RoHS) point-to-point soldering. This provides a critical advantage by performing intricate solder connections that previously required hand soldering – resulting in greater speed, accuracy and quality.

Back To Top

X-Ray

X-ray has become a critical process in the electronic manufacturing services industry with the development of components such as:

  • uBGAs
  • CSPs
  • CCGAs
  • BGAs (including double sided)
  • 0201s
  • QFNs
Back To Top

Water Wash

If your product has specific cleanliness requirements, Spectra-Tech utilizes a Stoelting water wash system with Zestron saponifier to ensure all fluxes and or contaminants are removed from products. This process is a key factor when conformal coating is required.

Back To Top

Hand Soldering

Spectra-Tech performs hand soldering for products with specialized soldering requirements. This includes prototype production, special customization and lead-free applications. All of our soldering personnel are certified to the latest industry standards including: IPC J-STD-001 for Soldering and IPC 7711 /7721 for Rework / Modifications.

Back To Top

Automatic Optical Inspection (AOI)

Spectra-Tech utilizes automated optical inspection (AOI) within our manufacturing process. This system uses cameras to scan products for defects such as missing, incorrect, incorrectly placed components as well as solder related defects. AOI operators are trained and certified to IPC-A-610 standards.

Back To Top

Functional Testing

Functional tests can be performed on custom test fixtures or customer-supplied test stations and verify that the circuit board meets the customers’ specifications and will work in the final application.

Back To Top

In-Circuit Testing (ICT)

Spectra-Tech can perform full In-Circuit Testing (ICT) using our SPEA 4030 Flying probe tester which measures each electronic component to verify that it is the correct value. Utilizing the flying probe test method also eliminates the need to invest in expensive test fixtures, while offering diagnostic capabilities not available in other test methods.

Back To Top

Conformal Coating

If your product requires conformal coating, Spectra-Tech can meet your demands with a wide range of coatings including acrylics, urethanes, UV curable, and silicones. We utilize a Nordson SL-940E Select Coat Machine along with dip, spray and brush coating methods for applying conformal coating. The purpose of conformal coating is to protect electronic circuits from harsh environments that may contain moisture and or chemical contaminants. By being electrically insulating, it maintains long-term surface insulation resistance (SIR) levels and thus ensures the operational integrity of the assembly. It also provides a barrier to air-borne contaminants from the operating environment, such as salt spray, thus preventing corrosion.

Back To Top

PCB Depaneling

Spectra-Tech operates a high-performance routing machine for the precise de-paneling of single circuit boards with electronic components.  The cutting techniques we use are fast, reliable and low stress which ensures high quality and maximum productivity.

Back To Top

Automated Fluid Dispensing

Spectra-Tech has automated fluid dispensing equipment for selective coating, potting, bead and meter-mix type applications. This provides our customers flexibility for custom assembly applications by utilizing a robust overhead three-axis motion platform suitable for inline or batch operations.

Back To Top
